Prix FOB
Obtenir le dernier prix3 ~ 6 USD / Piece ( Negotiable )
|1 Piece Minimum Order
Pays:
China
N ° de modèle:
XH-SCT-T16
Prix FOB:
3 ~ 6 USD / Piece ( Negotiable ) Obtenir le dernier prix
Localité:
China
Prix de commande minimale:
3 per Piece
Commande minimale:
1 Piece
Packaging Detail:
Cartons
Heure de livraison:
3-7 days
Capacité de Fournir:
20000 Piece per Week
Payment Type:
L/C, T/T
Groupe de produits :
Personne àcontacter Mr. Jay
No.68, Tian'an Cyberpark, No.55 Changshan Avenue, Jiangyin, Wuxi, Jiangsu

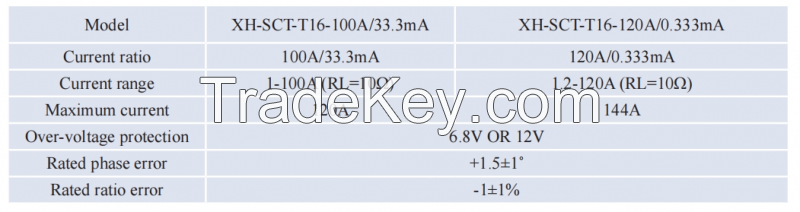

Specifications

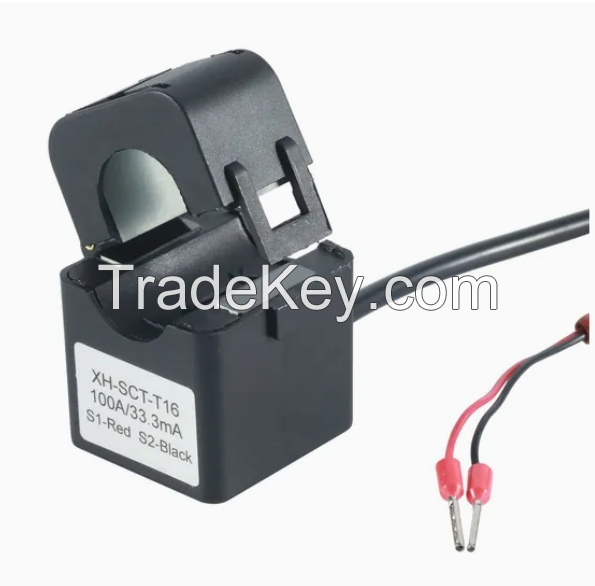

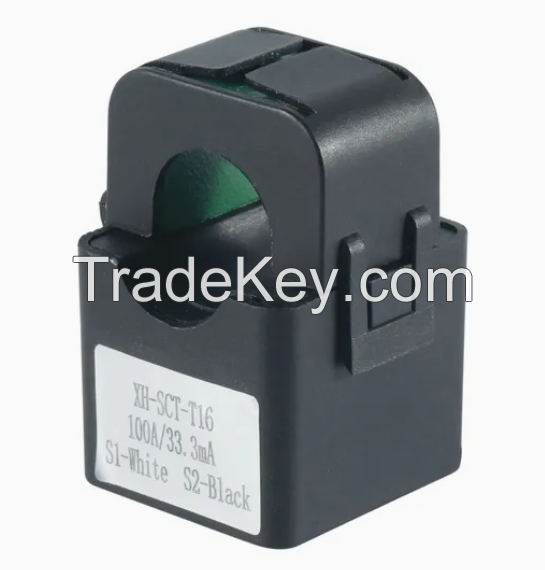

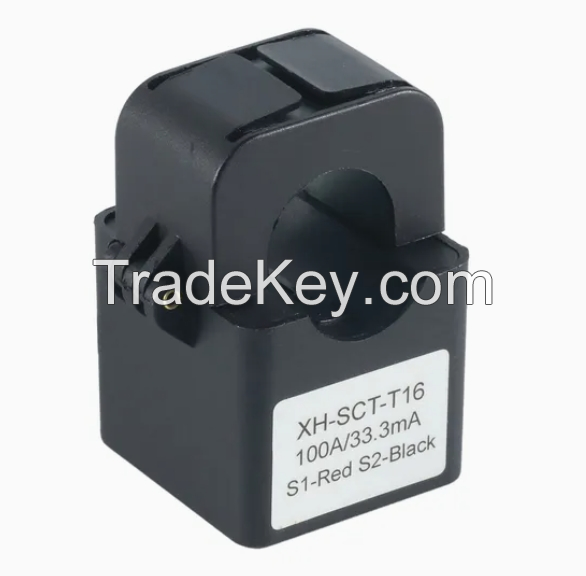

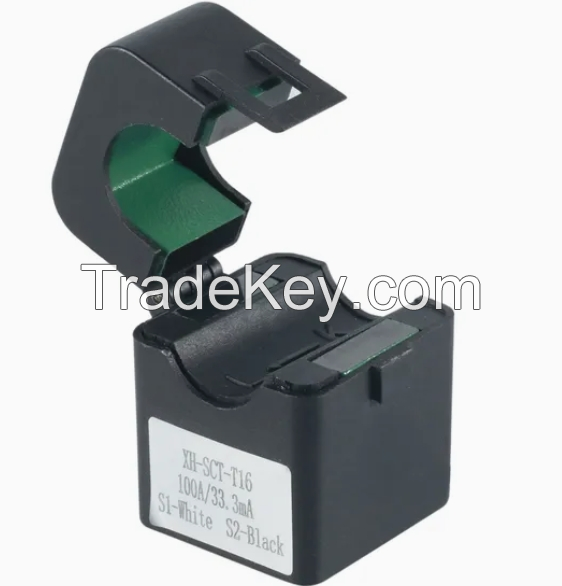

Of SCT-T16 Split Core Current Transformer Cts 100A
100mA
Maximum continuous primary current 5A to 1000AAC
Current Ratio: 3000: 1
Output: 0.333V, mV ,mA,A
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 3kV(Insulated Conductor)
Phase angle: Less than 2Â degrees at 50% of rated
current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34
mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized
Â

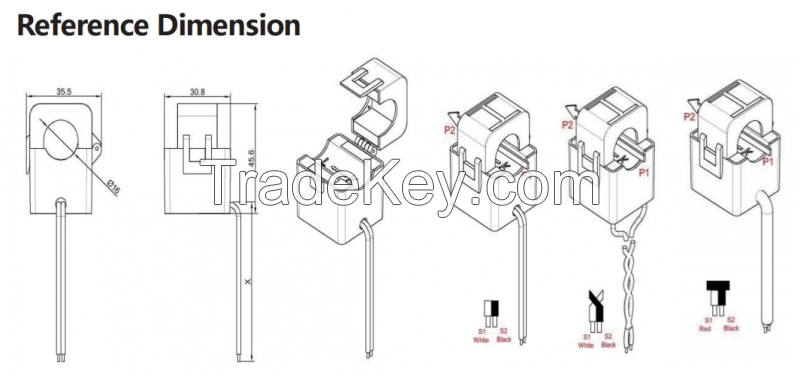

Drawing Size Of SCT-T16 Split Core Current Transformer Cts 100A 100mA

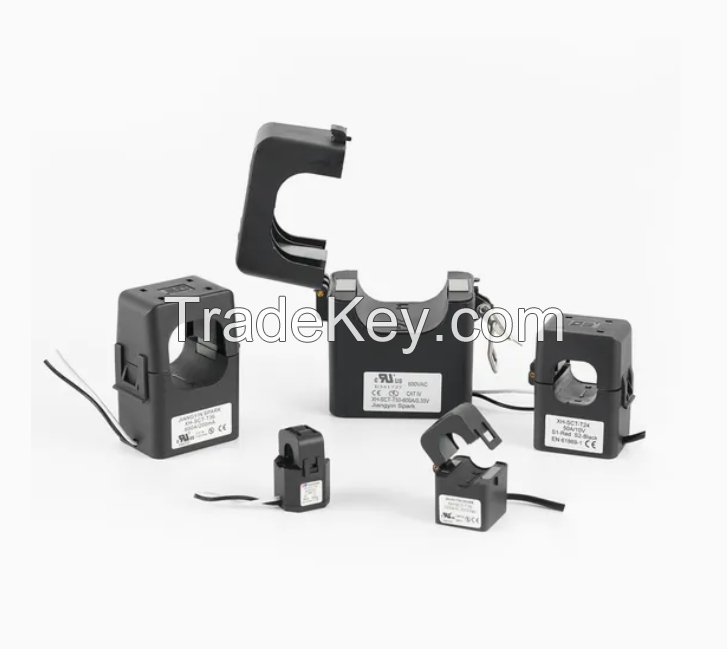

| Model | I.D. | Ratio | Rated Amps | Accuracy |
| XH-SCT-T06 | 6mm | 1000:1 | 1, 5,10, 15, 20, | 0.5 , 1.0 |
| XH-SCT-T10 | 10mm | 3000:1 | 5, 15, 30, 50, 75,80 | 0.5 , 1.0 |
| XH-SCT-T16 | 16mm | 3000:1 | 50, 70, 100, 120 | 0.5 , 1.0 |
| XH-SCT-T24 | 24mm | 3000:1 | 100, 150, 200, 300 | 0.5 , 1.0 |
| XH-SCT-T36 | 36mm | 3000:1 | 300, 400, 500, 600 | 0.5 , 1.0 |
| Pays: | China |
| N ° de modèle: | XH-SCT-T16 |
| Prix FOB: | 3 ~ 6 / Piece ( Negotiable ) Obtenir le dernier prix |
| Localité: | China |
| Prix de commande minimale: | 3 per Piece |
| Commande minimale: | 1 Piece |
| Packaging Detail: | Cartons |
| Heure de livraison: | 3-7 days |
| Capacité de Fournir: | 20000 Piece per Week |
| Payment Type: | L/C, T/T |
| Groupe de produits : | split core CT/current transformer |
