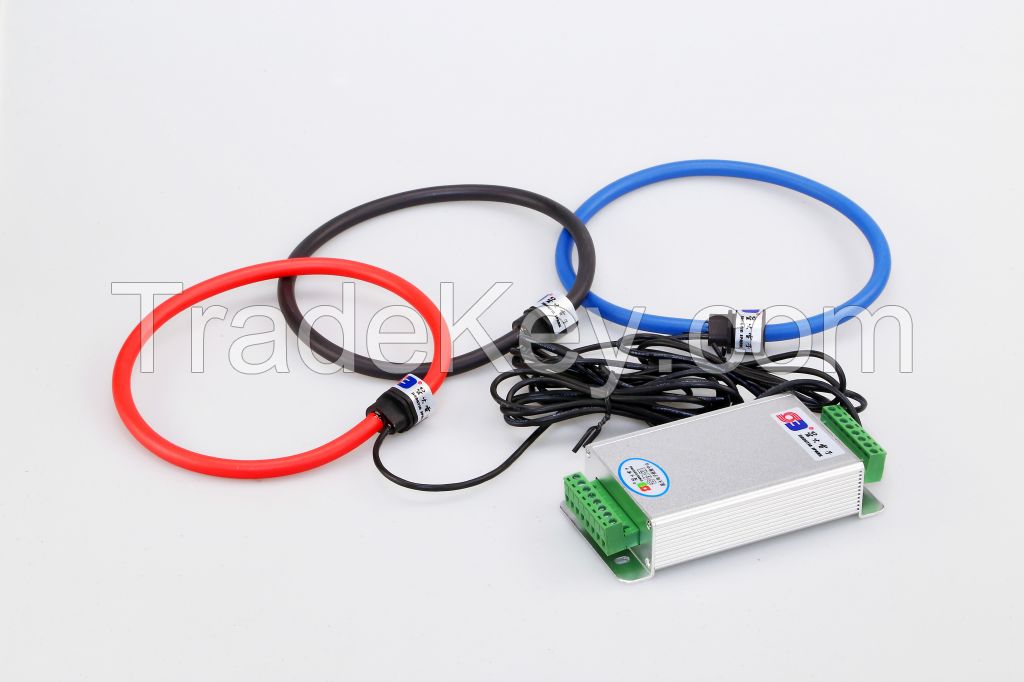

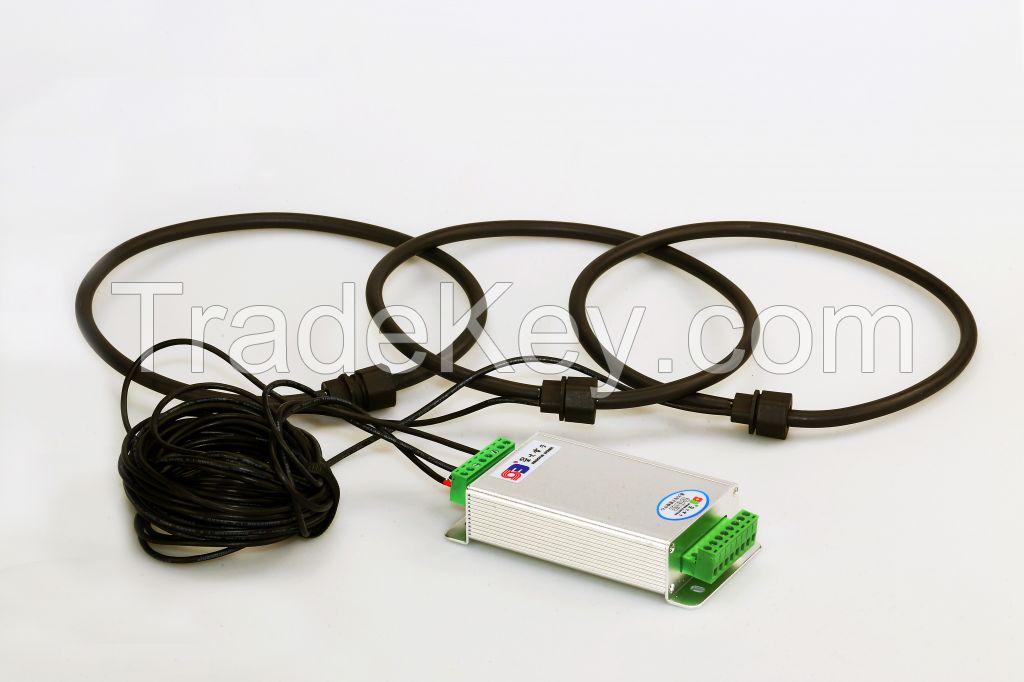

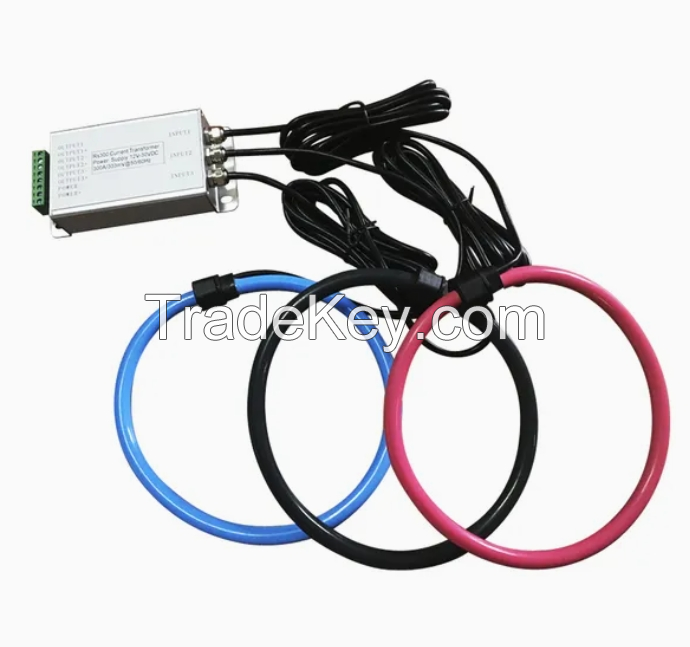

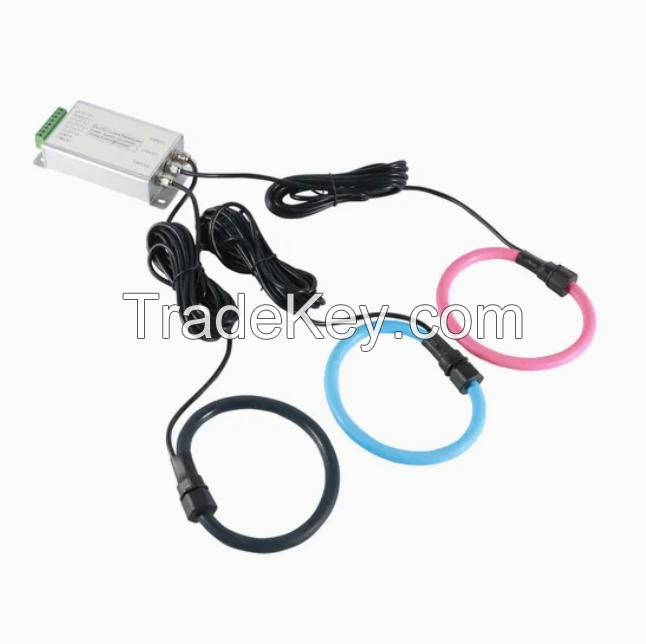

3 Phase Flexible Rogowski Coil High Accuracy 0.333V

Prix FOB

Obtenir le dernier prix

10 ~ 90 USD / Piece ( Negotiable )

|

1 Piece Minimum Order

Pays:

China

N ° de modèle:

RSCT

Prix FOB:

10 ~ 90 USD / Piece ( Negotiable ) Obtenir le dernier prix

Localité:

China

Prix de commande minimale:

10 per Piece

Commande minimale:

1 Piece

Packaging Detail:

Cartons

Heure de livraison:

3-7 Days

Capacité de Fournir:

20000 Piece per Week

Payment Type:

T/T, L/C

Groupe de produits :

Rogowski Coil

Contacter maintenant
Jiangyin Xinghuo Deyue Technology Co., Ltd

Jiangyin Xinghuo Deyue Technology Co., Ltd

China

8888 Points de confiance
1st Année

Personne à contacter Mr. Jay

No.68, Tian'an Cyberpark, No.55 Changshan Avenue, Jiangyin, Wuxi, Jiangsu

Contacter maintenant

Spécification du produit

  • Accuracy Grade: 1.0G
  • IP Rating: IP67
  • Certification:CE
  • Output:0-0.333V AC or 0-5V AC

La description

Product Description
Specifications Of 3 Phase Flexible Rogowski Coil
Rogowski coil sensor
1.Coil length 0.2m-2m
2. current 100A-100KA
3. Output 0-0.333V AC or 0-5V AC
4.Accuracy 1%

Details Of 3 Phase Flexible Rogowski Coil
Capable of accommodating a range of primary conductor sizes.
Characterized by high sensitivity, accuracy, linearity, minimum phase shift.
Suitable for harsh operating environments (temperature, humidity, EMI).
Current Range: 100A to 100kA
Accuracy: < 1%
Phase Shift: < 1 degrees at 50/60Hz (< 0.5 degrees typical) /li>
Linearity: ±0.2% from 10% to 100% of rated primary current
Primary Conductor Position Sensitivity: ± 2% maximum
Influence of External Field: ± 1.5% maximum
Coil Working voltage: 1000VRMS or 1000VDC
Coil Dielectric Surge Withstand: 5kVRMS for 1 minute
Operating temperature: -20ºC to +60ºC
Leads: Shielded cable, or as per customer need

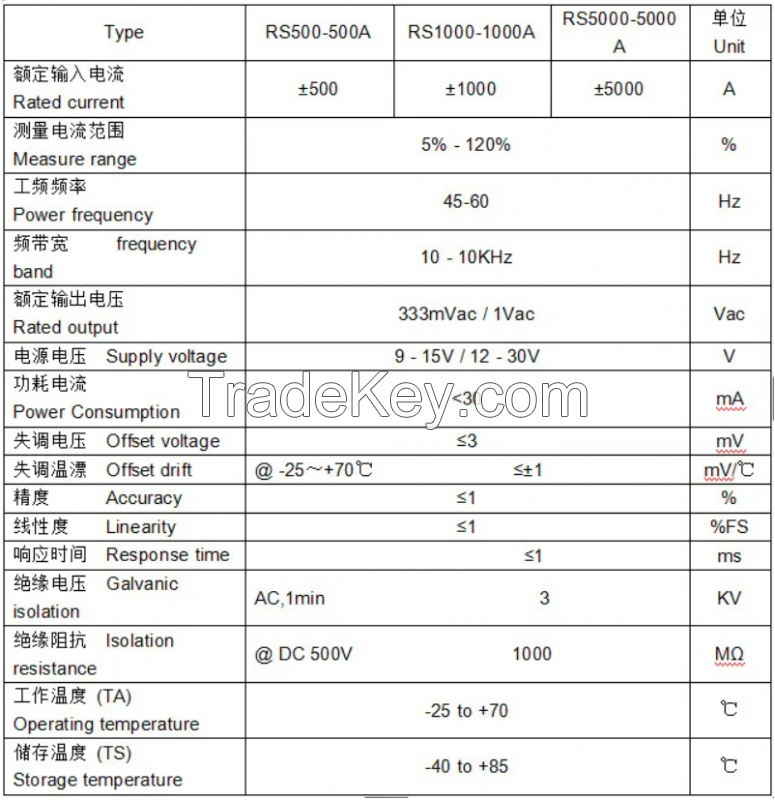

Electrical Data


Shipment

Hot Sales


Pays: China
N ° de modèle: RSCT
Prix FOB: 10 ~ 90 / Piece ( Negotiable ) Obtenir le dernier prix
Localité: China
Prix de commande minimale: 10 per Piece
Commande minimale: 1 Piece
Packaging Detail: Cartons
Heure de livraison: 3-7 Days
Capacité de Fournir: 20000 Piece per Week
Payment Type: T/T, L/C
Groupe de produits : Rogowski Coil
