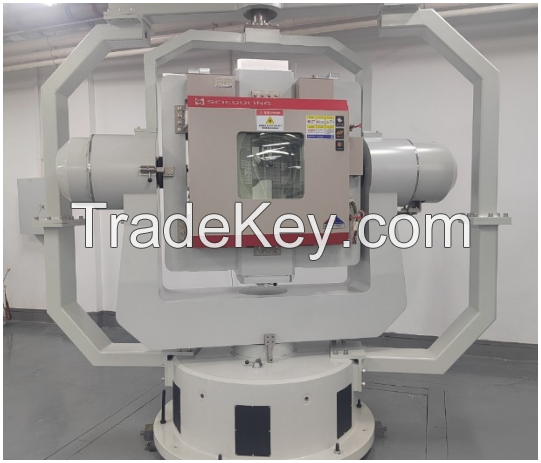

Three-Axis Temperature-Controlled Turntable
PN: ASTAT-400
â… . Application
Used for testing and calibration of aerospace inertial navigation devices/systems, defense/military equipment, research institutes, marine systems, and electronic sensors, including components such as: gyroscopes, accelerometer, reaction wheels, satellite sensors, test radar systems.

â…¡. Features

• Functions such as position control, rate control, and oscillation control
• Slip ring counting function and overspeed protection function
• Test surface temperature control protection function
• Compatible with a temperature control chamber for environmental temperature testing
• Dual test surfaces, high efficiency, optional inertial test system

Model	ASTAT-400
Structure Type	UOT Structure
Test Surface（mm)	400 mm(Length)×400 mm(Width)×260 mm(Height)
Surface Material	Stainless Steel/Aluminum Alloy
Surface Magnetic Leakage	1 Gs
Payload Capacity	60 kg (Customizable)
Test Temperature Range	（-60℃～+100）℃
Temperate Ramp Rate	5 ℃/min (average)
Axis	Inner Frame	Middle Frame	Outer Frane
Function	Position、Rate、Oscillation	Position、Rate	Position、Rate
Rotation Accuracy	±1.5″	±5″	±5″
Axis Perpendicularity	±2″
Surface Runout	0.02 mm
Angular Position Range	-95°ï½ž+95°	-95°ï½ž+95°	0.0000°ï½ž 359.9999°
Angular Resolution	0.36″	0.36″	0.36″
Position Accuracy	±2″	±3″	±3″
Repeatability	±2″	±3″	±3″
Angular Rate Range	(0.001～1000)°/s	(0.001～600)°/s	(0.001～1000)°/s
Angular Rate Range	Continuous rotation	Continuous rotation	Continuous rotation
Angular Acceleration	（0～200）º/s2	（0～100）º/s2	（0～100）º/s2
Rate Resolution	0.0001°/s	0.001°/s	0.001°/s
Angular Rate Accuracy Rate Stability
Other parameter
Conductive Slip Rings	Standard: 60 ring (Customizable)
User Channel Interface	JY27467T23B32PN/ JY27467T23B32SN each set
Surface/Fixture	Customizable surface or fixture
