Spécification du produit

  • Brand Name: Aoshi Control

La description

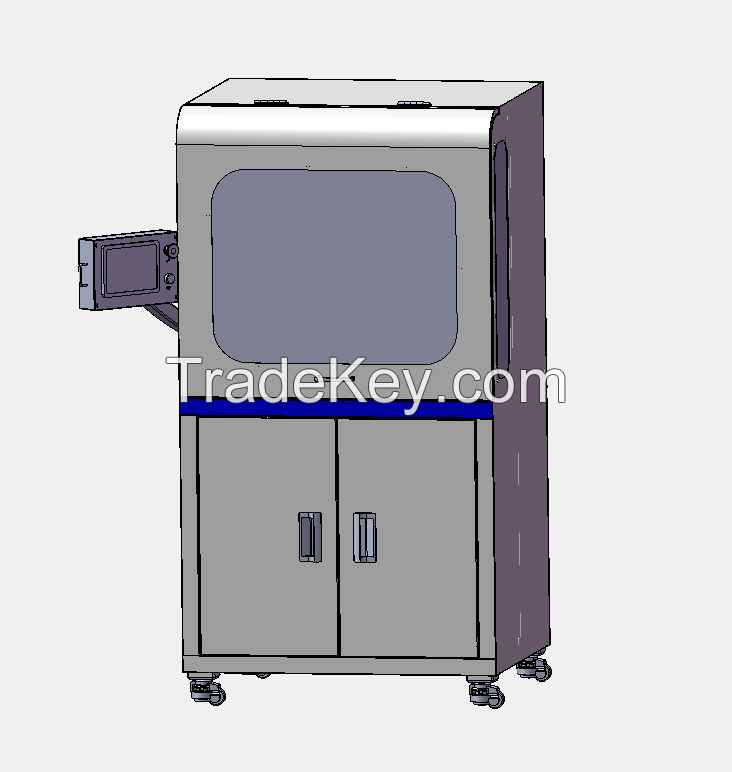

High-Precision Fiber Re-Winding Machine
SG-HRM-2.0



  • Introduction：

 Name and PN

Name：High-Precision Fiber Re-Winding Machine
PN：SG-HRM-2.0

 Usage

The equipment is mainly used for fiber splitting and re-winding of various specifications, and the equipment can support fiber diameter: Φ0.04 mm ~ Φ0.40mm.

u Features

  • The equipment is easy to operate and runs safely and stably.
  • Friendly human-machine interface, can achieve one-key high speed fiber rewinding and automatic multi-stage slow shutdownll
  • High precision meter can calculate the length of fiber rewinding, meter error less than 0.1%
  • Complete alarm stop and emergency stop functions can effectively protect the safety of people and equipment, and effectively prevent fiber breakagel
  • During the rewinding process, the fiber co-planarity is good, and the fiber torque caused by fiber splitting is effectively reduced.

Specification

Index Vaule
PN SG-HRM-2.0
Dimension L(900mm)*W(760mm)*H(1700mm)
Weight 300kg
Operating noise ≤60dB
Fiber shaft Row of fine trip 200mm
Repeat positioning accuracy ≤0.01mm
Fiber splitting speed 0~300rpm
Applicable fiber diameter 0.04mm～0.40mm
Meter error ≤0.1%
Tension control   2~100g（±0.5g）
