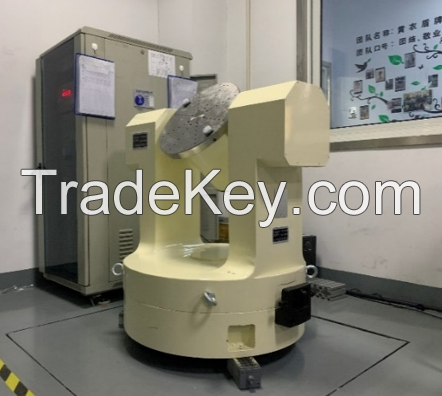

Dual-Axis Turntable

La description

Dual-Axis Turntable
PN: ASDA-450D、ASDA-400F
â… . Application
Used for testing and calibration of components in aerospace inertial navigation systems, defense/military industries, R&D institutes, marine systems, and electronic sensors, including: gyroscopes, accelerometer, reaction wheels, satellite sensors, test radar systems.

â…¡. Features

• Functions such as position control, rate control, and oscillation control
• Slip ring counting function and overspeed protection function
• Test surface temperature control protection function
• Compatible with a temperature control chamber for environmental temperature testing
• Optional customizable fixture design for the test surface and integrated inertial device testing systems

Model	ASDA-450D		ASDA-400F
Structure Type	UT Structure		UO Structure
Test Surface(mm)	Standrad: ɸ450 (Customizable)		400×400
Surface Material	Stainless Steel		Stainless Steel
Surface Magnetic Leakage	1 Gs		1 Gs
Payload Capacity	10 kg～50 kg (Customizable)		5 kg～40 kg (Customizable)
Mechanical Accuracy
Rotation Accuracy	±1.5″		±1.5″
Axis Perpendicularity	±2″		±2″
Surface Runout	0.02 mm		0.02 mm
Position Accuracy
Angular Position Range	0.0000°ï½ž359.9999°		0.0000°ï½ž359.9999°
Angular Resolution	0.36″		0.36″
Angular Position Accuracy	±2″ (Class I), ±3″ (Class II)		±2″ (Class I), ±3″ (Class II)
Repeatability	±2″		±3″
Rate Accuracy
Angular Rate Range	Inner Frame	Middle Frame	Inner Frame	Middle Frame
	(0.001～800)°/s	(0.001～400)°/s	(0.001～800)°/s	(0.001～400)°/s
Rotation Range	Continuous	Continuous	Continuous	Continuous
Angular Acceleration	≥±200 º/s2	≥±100 º/s2	≥±200 º/s2	≥±100 º/s2
Rate Resolution	0.0001°/s	0.001°/s	0.0001°/s	0.001°/s
Angular Rate Accuracy Rate Stability
Other Parameter
Conductive Slip Rings	Standard: 64 rings (Customizable)		Standard: 40 rings(Customizable)
User Channel Interface
