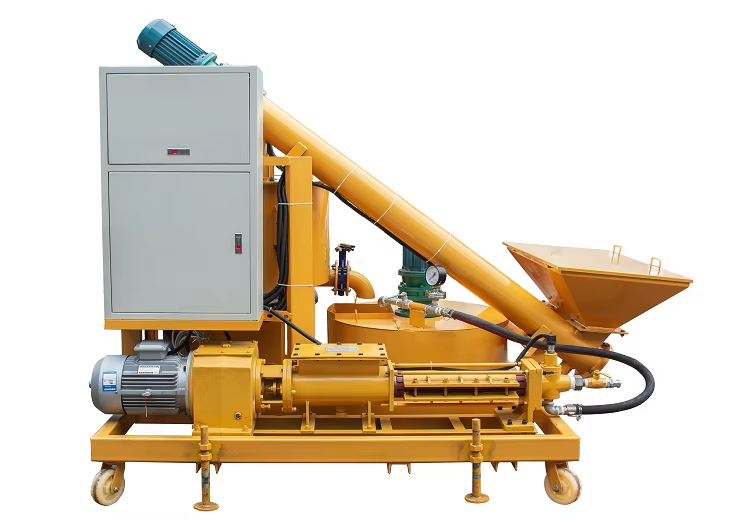

Vacuum Intelligence Grouting Machinery

Prix FOB

Obtenir le dernier prix

8800 ~ 9200 USD / Piece ( Negotiable )

1 Piece Minimum Order

Pays:

China

N Â° de modÃ¨le:

IGS

Prix FOB:

8800 ~ 9200 USD / Piece ( Negotiable )(Negotiable) Obtenir le dernier prix

LocalitÃ©:

China

Prix de commande minimale:

8800 per Piece

Commande minimale:

1 Piece

Packaging Detail:

wooden box

Heure de livraison:

15-30 days after received payment

Capacité de Fournir:

3000 Piece per Month

Payment Type:

T/T, L/C, Western Union, Money Gram, PayPal

Groupe de produits :

Intelligence Machinery

Contacter maintenant

Voir la brochure

liuzhou xuanqiao prestressing force machinery co., ltd

China

3000 Points de confiance

1st Année

Personne Ã contacter Mr. Liubin

Address:No.16 Jiutoushan Road,Yufeng Distric,Liuzhou City, Guangxi, China, Liuzhou, Guangxi

Contacter maintenant

SpÃ©cification du produit

Intelligence:Efficient
Stable:$9200/Piece

La description

Product Name: Vacuum Intelligence GroutingMachine
Standard:TB/T********8,ISO,GB/T
Application:Post-Tension Concrete Grouting
Feature: Efficient,Stable,Intelligent
Description:

Automatic Grouting (High-speed Mixing) Cart: It has functions of automatic feeding, automatic measurement, automatic boxing, and liquid crystal display. The mixing speed is ***0 revolutions per minute, the linear speed of the blades is less than *5 m/s, and the weighing accuracy is ±0.4%, which is much better than the requirement of ±1% set by the Ministry of Railways. The mixing data can be recorded each time, and the historical mixing data can always be accessed (the function can be turned off arbitrarily) with an accuracy of two decimal places. The working procedure is as follows: First, automatically add *0% or *0% of water, then automatically start the high-speed mixing tank and add the grout and cement automatically. After that, mix for two minutes, and then add the remaining *0% or *0% and mix for another 2 minutes before discharging into the storage tank with a mixing function. In addition to the automatic function, the collar also has a manual function. All the above procedures or individual working procedures can be completed manually. The maximum mixing capacity is **0 kilograms, which is sufficient for various types of grouting machines.
The maximum vacuum degree of the vacuum pump can reach *0.**7, which is better than the *0.**2 specified by the Ministry of Railways.

The grouting machine operates in a continuous working mode, with no pressure fluctuations. The pumped grout has no air bubbles. The theoretical workload is 4.5 to *0 cubic meters per hour, and it has the function of electronically controlled automatic or manual (pressure-maintaining tank) pressure. The DYL**-speed grouting pump can be used for stepless pressurization, and the pressure range can be adjusted freely. The pressure gauge indicates stably, and the pointer does not jump. The total range of the pressure gauge is 1.6 MPa, and the minimum scale value is less than 0.1 MPa. When grouting under pressure, the actual pressure is within the range of *5% to *5% of the pressure gauge scale, ensuring more accurate measurement.

Pays:	China
N Â° de modÃ¨le:	IGS
Prix FOB:	8800 ~ 9200 / Piece ( Negotiable ) (Negotiable) Obtenir le dernier prix
LocalitÃ©:	China
Prix de commande minimale:	8800 per Piece
Commande minimale:	1 Piece
Packaging Detail:	wooden box
Heure de livraison:	15-30 days after received payment
Capacité de Fournir:	3000 Piece per Month
Payment Type:	T/T, L/C, Western Union, Money Gram, PayPal
Groupe de produits :	Intelligence Machinery
