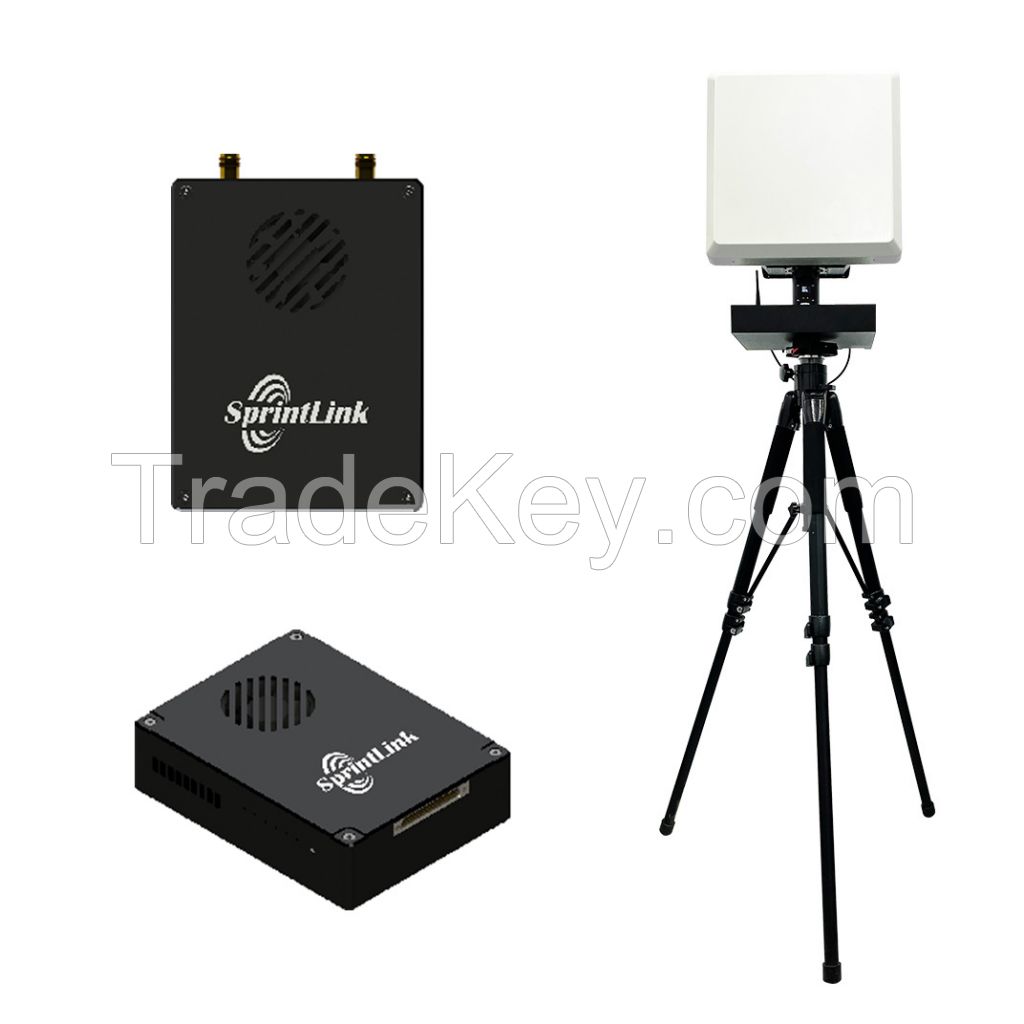

The Sprintlink 2W is a state-of-the-art wireless communication system, meticulously designed for scenarios demanding a communication range exceeding 50km. Paired with a 16dpi antenna panel and the SprintTracker on the ground, this system boasts a staggering communication range of over 80km, potentially even more. Its advanced features, such as re-transmission and adaptive frequency hopping, ensure consistent and high-quality transmission.
Key Features:
RC Link Specifications
| Frequency | 1.4GHz (default)/2.4GHz Please contact us if you need 2.4Ghz |
| Bandwidth | 2.5MHz (uplink); 10MHz(downlink) |
| Power | 33dBm |
| Modulation | OFDM |
| Constellation | BPSK; QPSK; 16QAM |
| FEC | LDPC (1/2, 2/3, 3/4, 5/6) |
| Duplex | TDD |
| Downlink throughput | 2M bps BM bps |
| Uplink throughput | 300kbps |
| Voltage | 12V-30V |
| Working temperature | -20°C~60°C |
| Size | 125.3 x l08.4 x 23.5mm |
| Weight | 345g |
| Video Interface | Ethernet |
| Other Interface | Serial; PPM/S.bus |
SprintTracker Specifications
| lnterface | Â |
| Video interface | Ethernet/HDMI |
| Video output interface | Ethernet/HDMI |
| Video protocol | TCP/UDP |
| Telemetry in put port | Serial;TTL |
| Telemetry output port | Serial;TTL |
| Video transmission | Â |
| Frequency | 1.4GHz |
| Distance | 100km |
| Downlink throughput | 10Mbps(Max) |
| Uplink throughput | 300Kbps(Max) |
| Max of power | 33dBm |
| Telemetry | Â |
| Distance | 100km |
| Telemetry in put port | 115200bps(Max) |
| Telemetry output port | 115200bps(Max) |
| Tracker | Â |
| YAW stability enhancement accuracy | ±1° |
| YAW rotation range | Un limited |
| PITCH rotation range | -15-135° |
| Max turning rate | 300 °/s |
| Consumption | 30W |
| Working temperature | -20~50°C |
| Storage temperature | -20~60°C |
| Working humidity | 20%-70% |
