1. Basic Information of the Product:
1.1 Product Name:

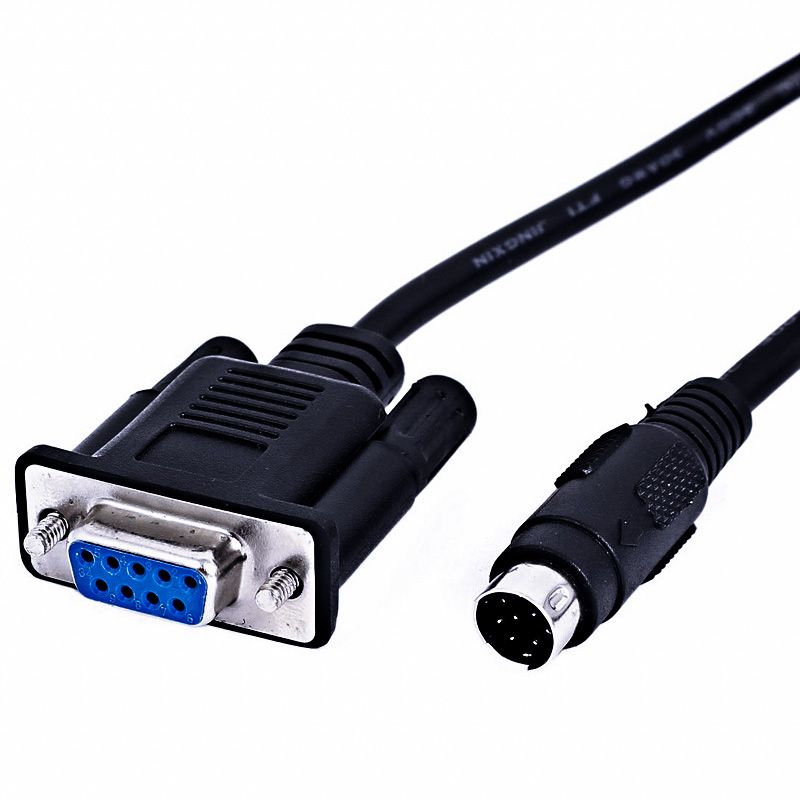

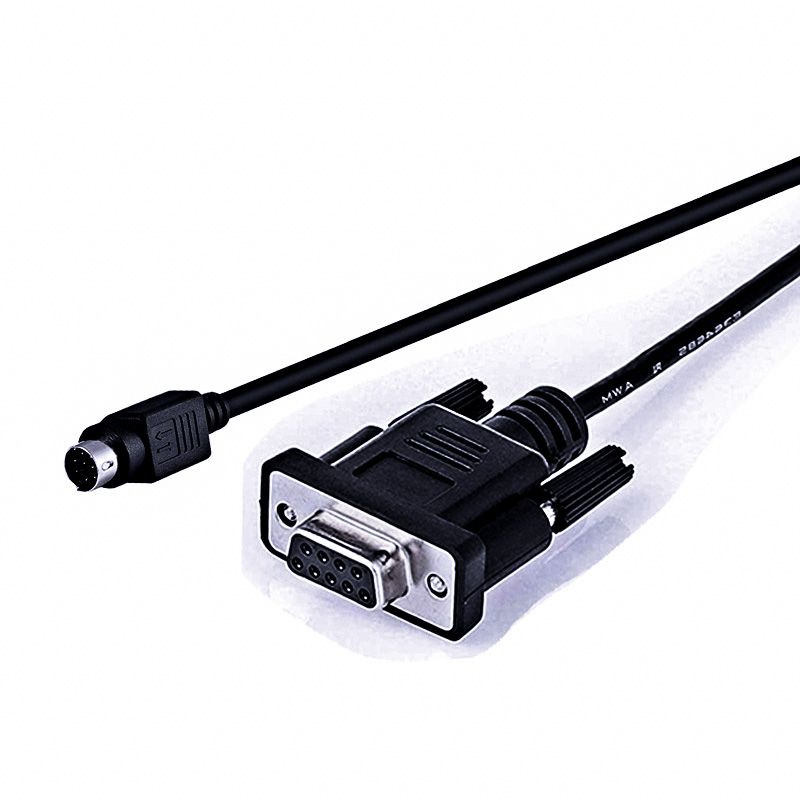

MINI DIN 8PIN Male to DB9 Female RS232 Signal Adapter
Connecting Cable

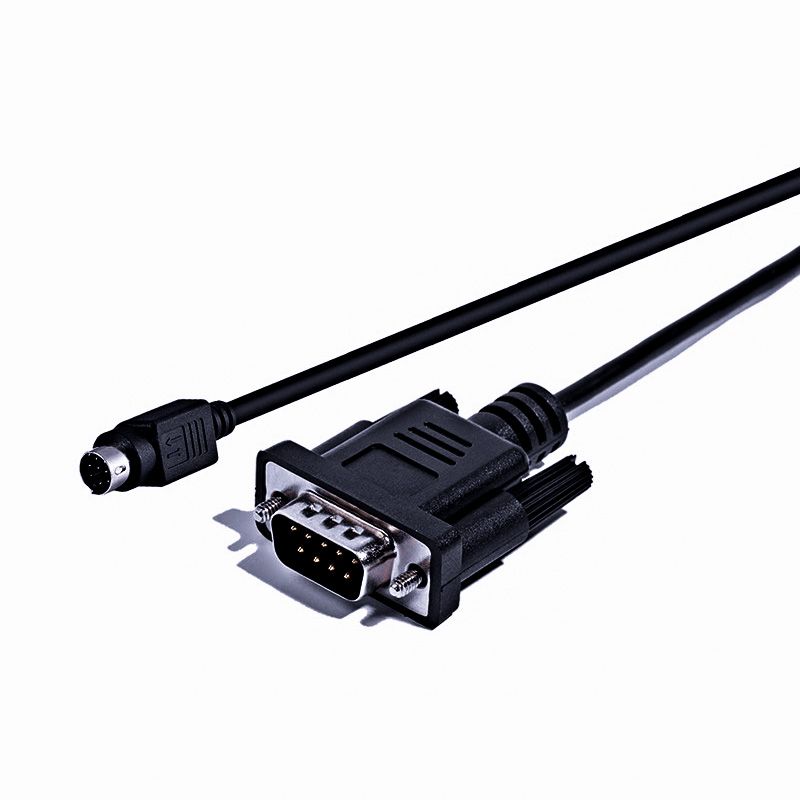

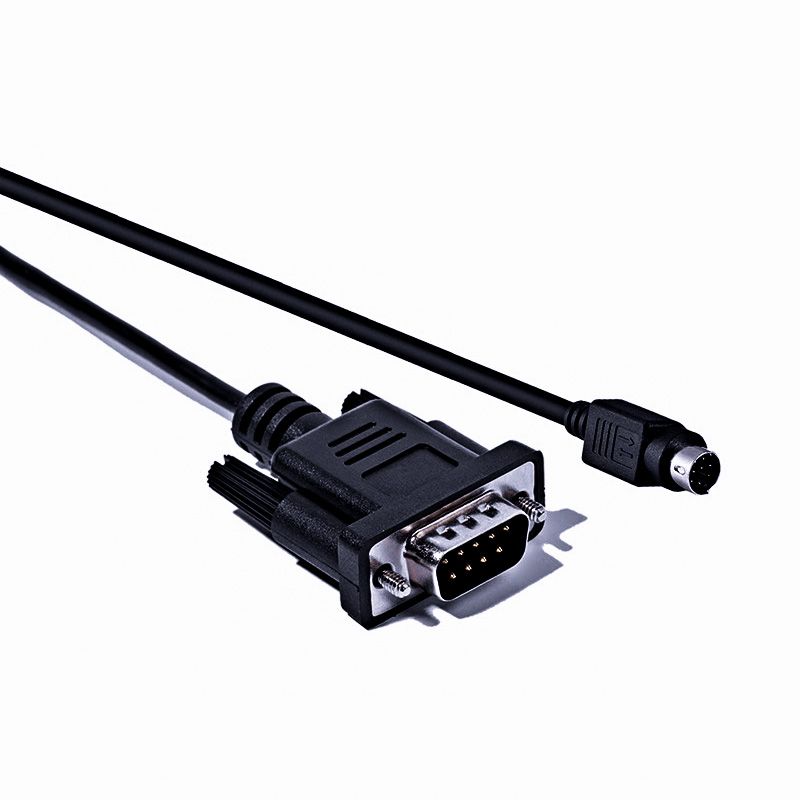

MINI DIN 8PIN Male to DB9 Male RS232 Signal Adapter
Connecting Cable

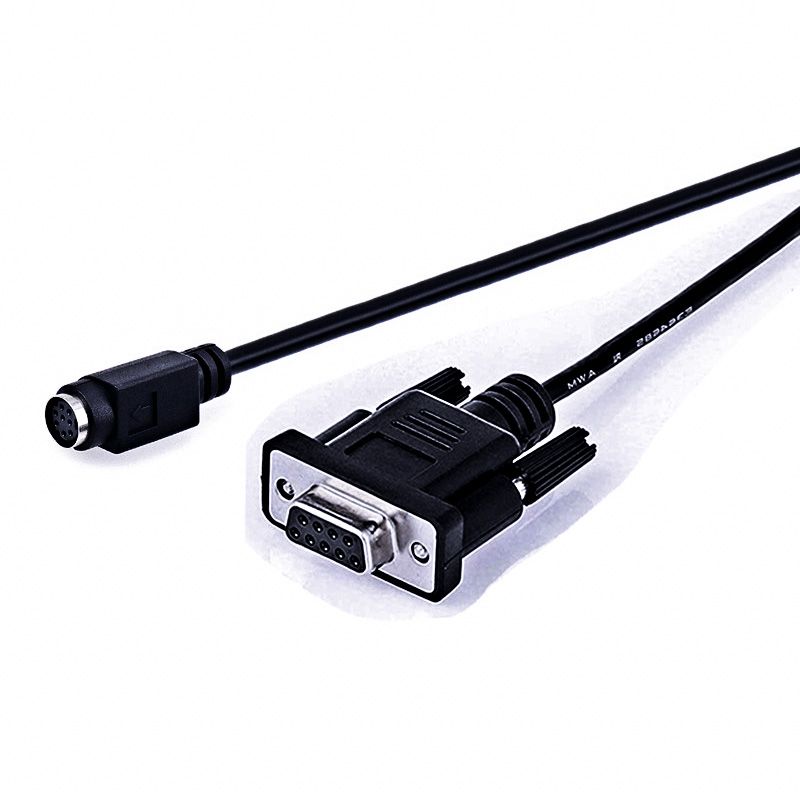

MINI DIN 8PIN Female to DB9 Female RS232 Signal Adapter
Connecting Cable
MINI DIN 8PIN Female to DB9 Male RS232 Signal Adapter
Connecting Cable
1.2 Length: Customizable from 10CM to 5 meters (such as
20CM, 25CM, 38CM, 4.75 meters, etc.)
1.3 Wire Specification: The core wire materials we use are
all pure copper or tin-plated oxygen-free copper.
There are several commonly used types:
1.3.1 2Cx22AWG+OD:3.5MM+PVC+Black. This type is mainly used
for devices to pass a current of 2A-3A for charging.
1.3.2 2Cx24AWG+OD:3.5MM+PVC+Black. This type is mainly used
for charging devices with a current of 1A-2A.
1.3.3 4Cx28AWG+OD:3.5MM+PVC+Black. This type is mainly used
for charging devices with a current of 300mA-500mA and data
transmission.
1.3.4 2Cx28AWG+1Px28AWG+Aluminum
Foil+Braiding+OD:3.5MM+PVC+Black. This type is mainly used
for charging devices with a current of 300mA-500mA and data
transmission. It is also anti-interference and is generally
used for long wires and devices with high requirements for
signal transmission.
1.3.5 If customers are not satisfied with the above types,
corresponding wires can be customized according to their
requirements.

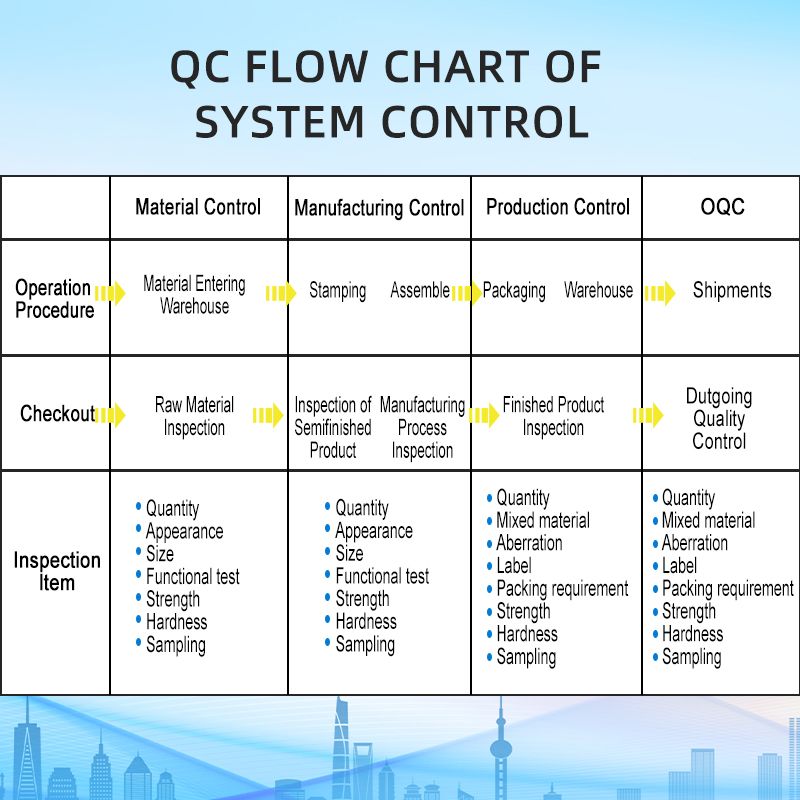

2. Testing:
2.1 100% short circuit, open circuit, and misalignment
test;
2.2 Insulation impedance test, DC5V, 5MΩ;
2.3 Conductance impedance test: 3Ω; DC high voltage: 300V
2.4 AC withstand voltage: 100V
3. Product Certification:
3.1 RoHS and CE certifications.
4. Packaging:
4.1 Conventional Packaging: Each cable is packed in a PE
zipper bag. PE bag sizes: 8CMx12CM, 9CMx13CM.
100PCS-500PCS are packed in one carton. Carton sizes:
46CMx30CMx20CM, 30CMx20CMx15CM.
The gross weight of a large carton does not exceed 15KG,
and that of a small carton does not exceed 5KG.
4.2 Customized Packaging: Different packaging forms can be
customized according to customers' requirements. We have
previously made: paper box + blister; cardboard + blister;
cardboard + yin-yang bag; airplane box, etc.
Type: Serial Port Cable
Converter Type: Adapter/Connecting Cable
Connecting Cable: VGA Cable
Applicable Devices: Personal Computers
Process: Welding + Injection Molding
Interface Type: DB9-MD8P
length: Customizable from 10CM to 5 meters
conductor: Copper
Short/Open circuit test: 100%
Insulation impedance test: DC5V, 5MΩ
Conductance impedance test: 3Ω
DC high voltage: 300V
Product certification: RoHS and CE certifications
OEM: Supported
Applicable device: Computer
AC withstand voltage: 100V
Mini DIN8 to DB9 RS232 Signal Adapter Cable
DIN8-Pin Male/Female to DB9 Male/Female Serial Cable
Industrial RS232 to DIN8-Pin Connection Harness
