Prix FOB
Obtenir le dernier prix50000 ~ 85000 USD / ( Negotiable )
|1 Set Minimum Order
Pays:
China
N ° de modèle:
ZGFM-1500H
Prix FOB:
50000 ~ 85000 USD / ( Negotiable ) Obtenir le dernier prix
Localité:
china shanghai
Prix de commande minimale:
50000
Commande minimale:
1 Set
Packaging Detail:
Vacuum bag
Heure de livraison:
30 days after payment
Capacité de Fournir:
20 Set per Month
Payment Type:
Money Gram, Western Union, L/C
Groupe de produits :
Personne àcontacter Chris-cn.seller1.innovo.054334
Chuzhou, Anhui

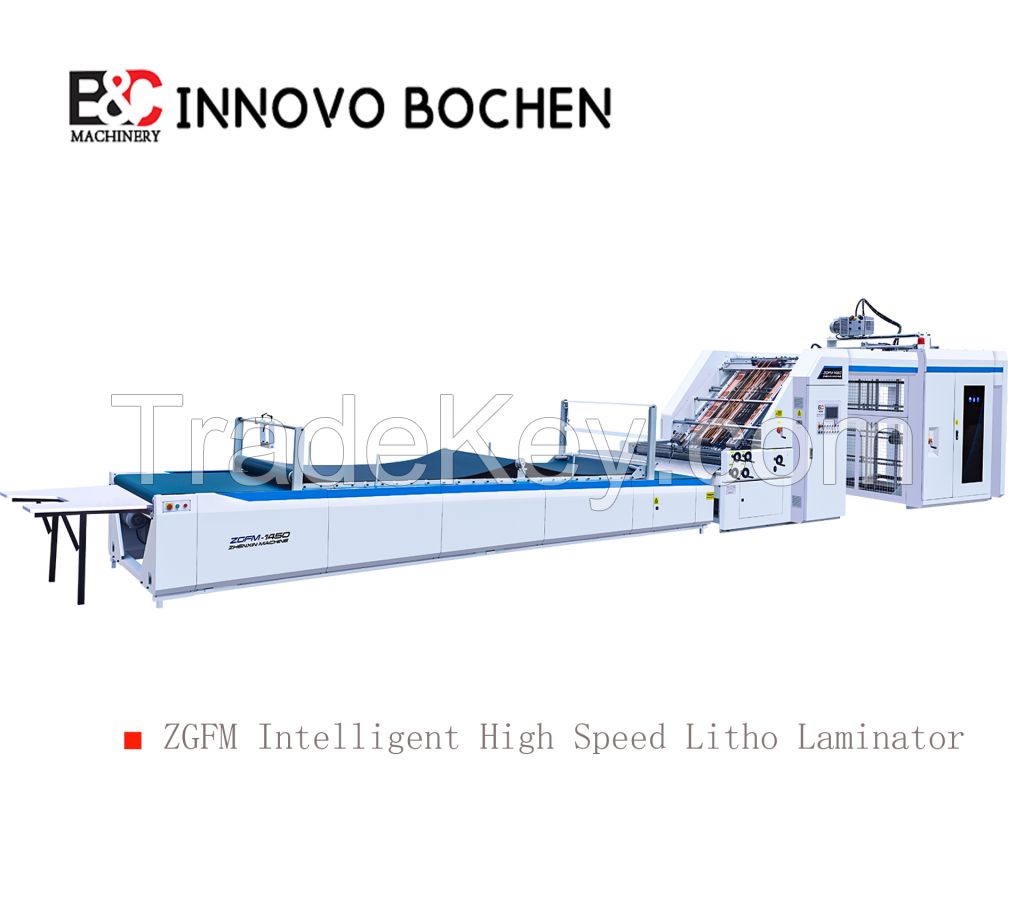

1. Product
description
1.1 Function:
The paper can be laminated with
paperboard to increase the strength and thickness of the material
or special effects. After the die-cutting, it can be used for
packaging boxes, billboards and other purposes.
Â
1.2 Structure:
A. Upper Paper Feeder: It can send
stacks of 120-800gsm paper from above.
B. Bottom feed: It can send
0.5~10mm paperboard from below.
C. Gluing mechanism: The glued
water can be applied to the fed paper.
D. Regulatory organization - Fits
the two papers according to the set tolerances.
E. Pressurizing Conveyor... Presses
the attached paper and conveys it to the delivery
section.
Â
1.3 Principles:
The top paper is sent out by the
upper paper feeder and sent to the start detector of the
positioning mechanism for detection. Then the bottom paper is sent
out; after the bottom paper is coated with glue on the glue wheel,
the top paper and the bottom paper are respectively conveyed to the
paper Synchronous detectors on both sides, after the detection, the
controller calculates the error value of the paper and the bottom
paper, and the servo compensation device on both sides of the paper
compensates the paper to a predetermined position for splicing, and
then pressurizes the conveying. The machine presses the paper and
conveys it to the delivery machine to collect the finished
product
| Pays: | China |
| N ° de modèle: | ZGFM-1500H |
| Prix FOB: | 50000 ~ 85000 / ( Negotiable ) Obtenir le dernier prix |
| Localité: | china shanghai |
| Prix de commande minimale: | 50000 |
| Commande minimale: | 1 Set |
| Packaging Detail: | Vacuum bag |
| Heure de livraison: | 30 days after payment |
| Capacité de Fournir: | 20 Set per Month |
| Payment Type: | Money Gram, Western Union, L/C |
| Groupe de produits : | litho laminator |
