Prix FOB
Obtenir le dernier prix10000 ~ 1e+06 USD / Set ( Negotiable )
|1 Set Minimum Order
Pays:
China
N ° de modèle:
TBD
Prix FOB:
10000 ~ 1e+06 USD / Set ( Negotiable ) Obtenir le dernier prix
Localité:
China
Prix de commande minimale:
10000 per Set
Commande minimale:
1 Set
Packaging Detail:
Wooden case
Heure de livraison:
20 days
Capacité de Fournir:
1 Set per Month
Payment Type:
T/T, Other
Groupe de produits :
Personne àcontacter Mr. Dafu
Industrial park, Jianxi District, Luoyang, Henan, China, Luoyang, Henan
PRODUCT DESCRIPTION

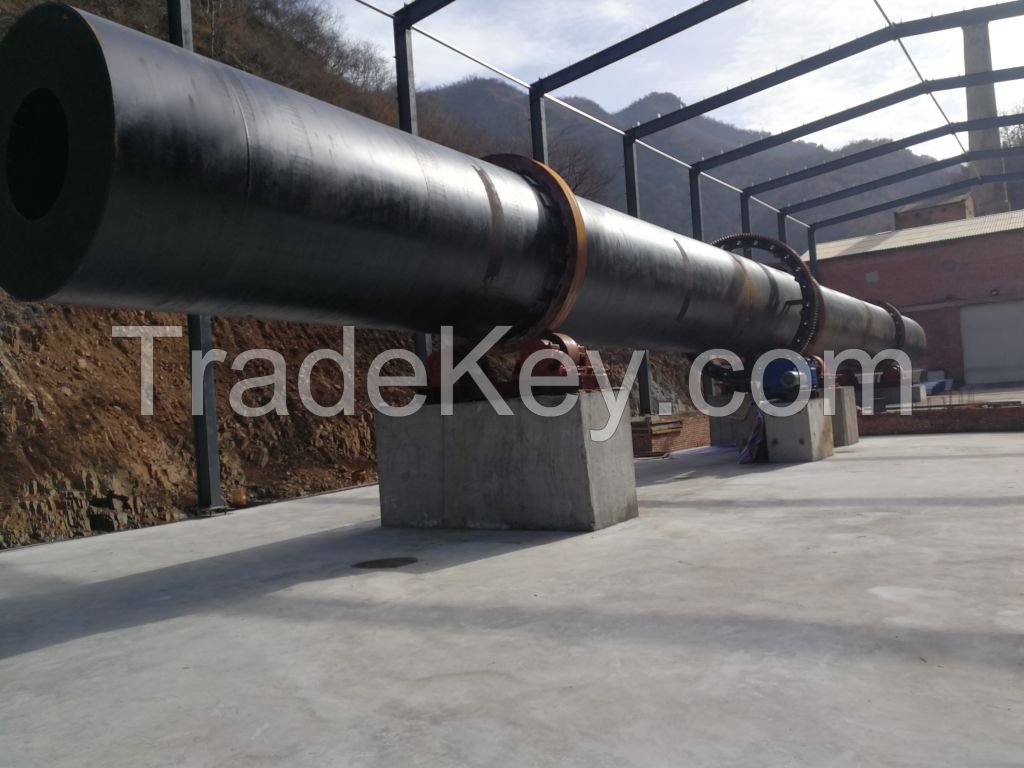

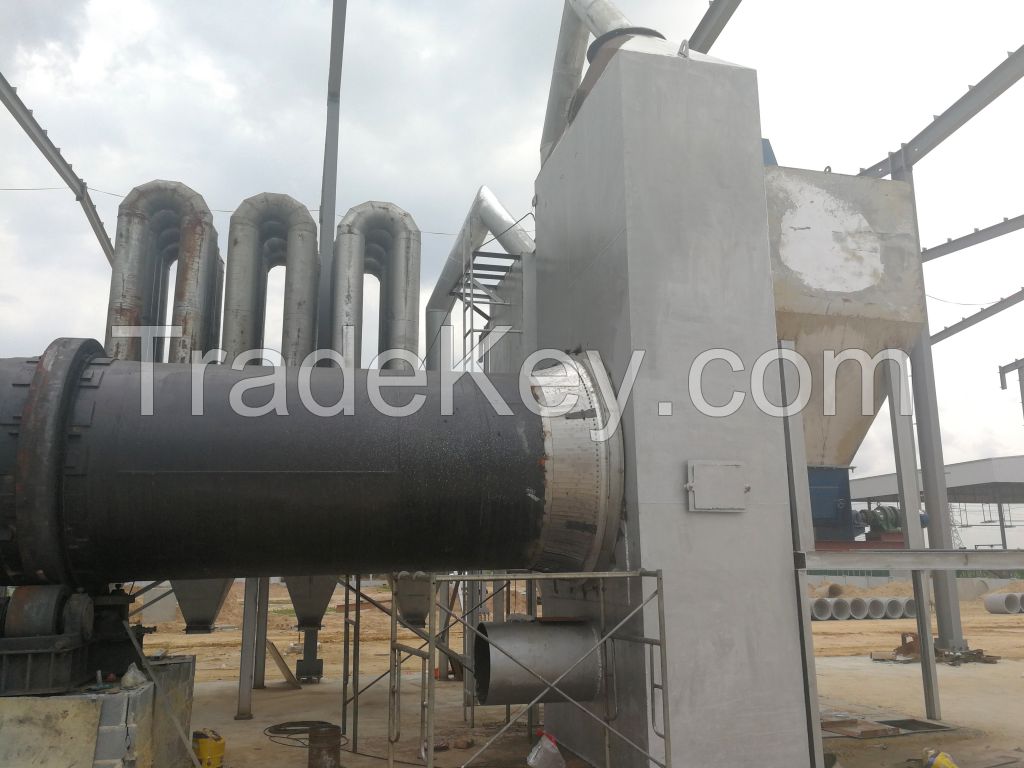

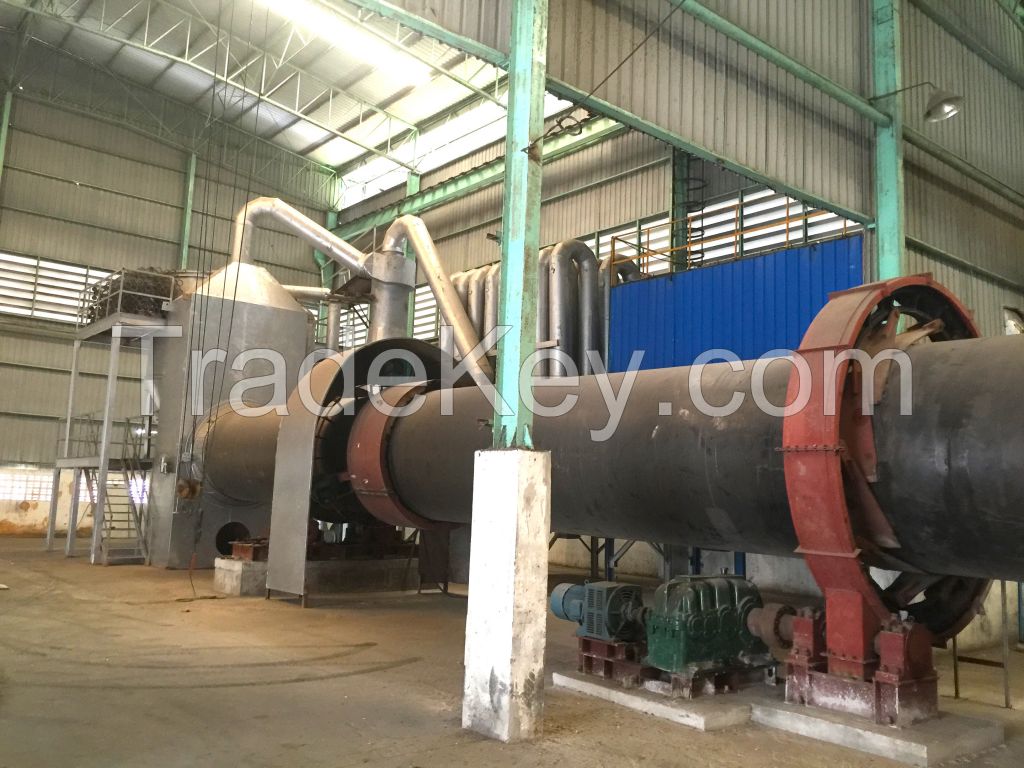

Rotary kiln, also known as a rotary combustion kiln, is an
eco-friendly heat treatment furnace used for continuous calcination
or sintering of solid materials to induce chemical reactions or
physical changes. It can be categorized into cement kilns,
metallurgical chemical kilns, and lime kilns based on the material
being processed. Rotary kilns are commonly used in lime plants,
cement plants, steel plants, and metallurgical plants.
PRODUCT STRUCTURE
A rotary kiln has a simple structure that is composed of a kiln
lining, kiln shell, gear ring, driving device, supporting
device,
catch wheel device, sealing device, and other main parts. The whole
machine adopts a fully automatic control system, which is reliable
in operation.
APPLICABLE MATERIALS
Limestone, bauxite, cement clinker, nickel iron ore, kaolin,
dolomite, aluminum hydroxide, chrome ore, dolomite, lithium ore,
clay, gypsum, zinc oxide, ore slime, etc.
ADVANTAGES
1. High production capacity: Up to *****0,**0 t/h.
2. Low energy consumption: Using three heating methods of
calcination, sintering, and pyrolysis, with uniform heat
distribution.
3. Highly intelligent: The heating temperature, rotation speed, and
axial movement of the cylinder can all be
controlled.
4. Good sealing performance: Reliable kiln tail and kiln head
sealing devices are installed at the feed end (tail) and discharge
end (head) of the cylinder to prevent cold air from entering and
smoke and dust from overflowing.
5. Easy maintenance: Larger kilns are equipped with auxiliary drive
devices that allow the cylinder to rotate at a very low speed to
meet installation and maintenance needs.
| Pays: | China |
| N ° de modèle: | TBD |
| Prix FOB: | 10000 ~ 1e+06 / Set ( Negotiable ) Obtenir le dernier prix |
| Localité: | China |
| Prix de commande minimale: | 10000 per Set |
| Commande minimale: | 1 Set |
| Packaging Detail: | Wooden case |
| Heure de livraison: | 20 days |
| Capacité de Fournir: | 1 Set per Month |
| Payment Type: | T/T, Other |
| Groupe de produits : | Rotary Kiln |
