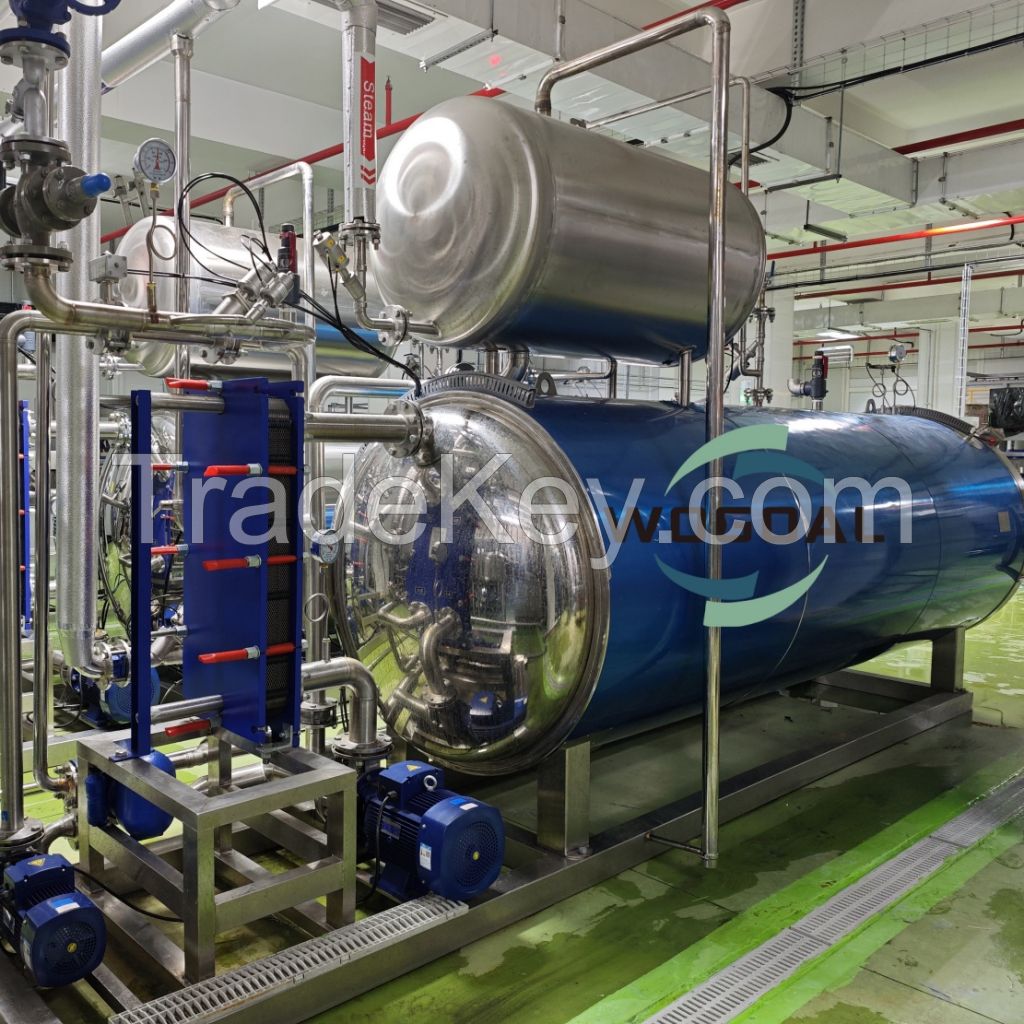

Rotary High Temperature High
Pressure Water Spray Retort Sterilization Machine for Plastic
Bottle
Â
Â
Applicable Scope:
ÂÂ 1. Glass container: glass jar, glass bottle
Â2. Metal container: tin can
Â3. Plastic container: PP bottle, HDPE bottle
Â4. Soft package: Aluminum foil bag, transparent bag, vacuum bag, retort pouches, doy-packs, etc.
ÂFeatures:
ÂA. Suitable for all heat resistant package material including glass container;
ÂB. Safety interlock Device for quick closure of retort, to ensure the safety of operator;
ÂC. Quick heating, only need about ***2 minutes to reach the sterilization temperature;
ÂD. Uniform heat distribution, no blind angle;
ÂE. Adopting the multi-phase process for rising and dropping of temperature, minimize the temperature difference between the surface and center of packed food, maintain the flavor and nutrition of food. Mild heating and cooling process can protect the fragile container and glass container;
ÂF. Direct heating by steam and indirect cooling by continually recycling the water through the heat exchanger, avoiding secondary contamination to the food package;Â
ÂG. Employing soft water for sterilization to avoid pollution to the surface of package; no special requirements for cooling water which reduce the cost of sterilization;
ÂH. Siemens PLC automatic control system and touch screen, easy to operate;
ÂI. Pressure control system can adjust the pressure in the tank automatically and precisely in case the packages break or deformation during sterilization process;
ÂJ. Monitoring temperature ensures food safety, saves energy, reduces production time and assists in providing the best quality product.
ÂK. System will make alarm calls automatically when the temperature, the pressure, the water level, or any other kinds of error occur.
ÂWorking principle:
ÂFirst filling the retort with a small amount of process water and the water level is maintained below the basket bottom level. Then the process water is drawn from the bottom of the retort by a high capacity circulation pump and spray from nozzles located along the top and sides of the retort.Â
 ÂSimultaneously the steam valve opens and the steam is introduced into the retort through the steam spreader on the bottom of the retort directly heating those process water spraying from nozzles and making the temperature inside retort evenly.
ÂAnd when the temperature inside retort reaches the programmed sterilization temperature, it  will be kept during the sterilization process. At the same time the pressure in the retort also will be kept by adding or venting compressed air as needed. Finally the cooling water through heat exchanger will continually make those sterilization water cool down until the sterilization process is finished.
Â
Technical
Parameters:Â
Â
|
 Model No. |
Outside Dimension(mm) |
Inner Diameter  (mm) |
Vessel Length (mm) |
Capacity (M³) |
Body Thickness  (mm) |
Max Working Pressure  (Mpa) |
Max Working Temperature(ºC) |
Weight (Kg) |
Installed Power  (Kw) |
Voltage (V) |
||
| Length | Width | Hight | ||||||||||
| WG.***1.B.3 | ***5 | ***0 | ***8 | ***0 | **0 | 1.*0 | 4 | 0.3 | **7 | **0 | 3.5 | **0 |
| WG.***2.B.3 | ***0 | ***0 | ***8 | ***0 | ***0 | 1.*0 | 4 | 0.3 | **7 | **0 | 6 | **0 |
| WG.***2.B.3 | ***2 | ***0 | ***0 | ***0 | ***0 | 2.*0 | 5 | 0.3 | **7 | **0 | 6 | **0 |
| WG.***3.B.3 | ***0 | ***0 | ***0 | ***0 | ***0 | 3.*0 | 5 | 0.3 | **7 | ***0 | *1.5 | **0 |
| WG.***4.B.3 | ***8 | ***0 | ***0 | ***0 | ***0 | 4.*0 | 5 | |||||
