Product Features
1. Wide range of measurements:
| Current Transformer (CT) | Voltage Transformer (PT) |
| CT ratio and phase-angle accuracy | PT excitation and saturation |
| CT accuracy for different burdens | Burden impedance |
| CT winding resistance | PT polarity |
| CT inductance (saturated and unsaturated) | Winding resistance Saturated and non-saturated inductance |
| CT excitation characteristics |  |
|
ALF and FS (direct and indirect) Burden impedance |
 |
| CT residual magnetism |  |
ÂÂ
2. Easy to use. The CT Analyzer allows all types of single and
multi-ratio current transformers to be tested, and it evaluates
the current transformer within seconds with the push of a
;
3. The highest measurement accuracy of the CT analyzer: 0.*5% / 2
minutes during field calibration;
4. Automatic evaluation according to IEC and
IEEE standards;
5. CT analyzer debugging time is short (automatic test duration
6. Excellent workplace safety - Tests run at max.
**0V;
7. Very small and lightweight (＜9kg/*9.8lbs),
easy to transport for on-site testing;

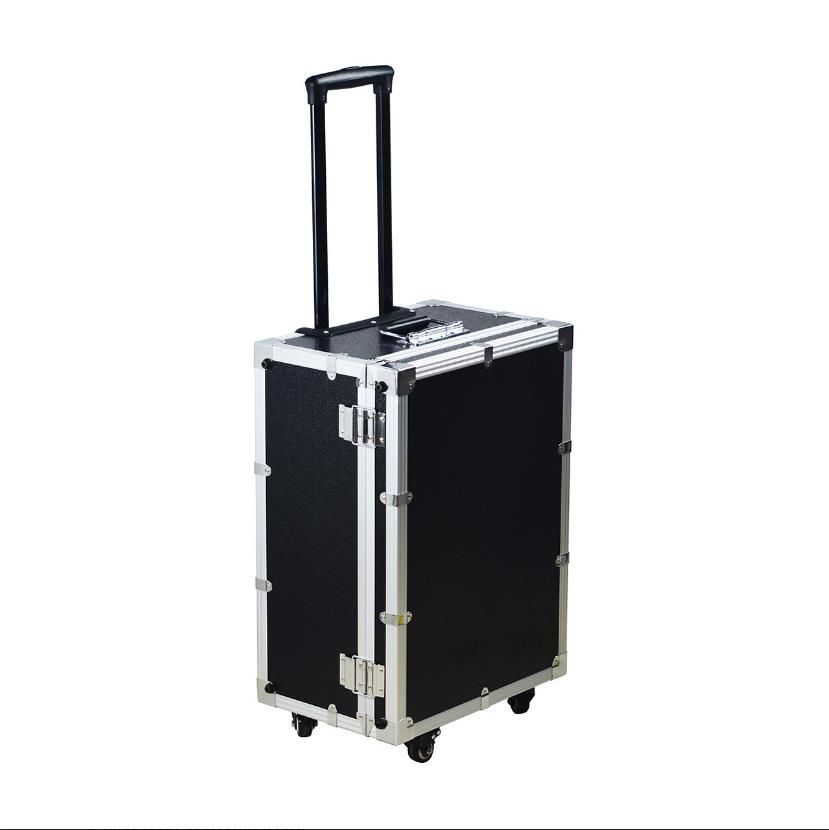

8. The CT analyzer has a professional pull box design that is
easy to carry and resistant to vibration.
Applications
The following values can be determined using the CT/PT
Analyzer:
1. CT:
(1) Accuracy of the ratio and phase angle, taking into
consideration the nominal burden and connected burden
(2) CT excitation and saturation
(3) Burden impedance
(4) Winding resistance Saturated and non-saturated inductance
(5) CT polarity
2. PT:
(1) PT excitation and saturation
(2) Burden impedance
(3) Winding resistance Saturated and non-saturated inductance
(4) PT polarity
| Type | CTA****0C | |
| Usage | CT,PT | |
| Reference standards |
GB********6, GB********6, GB*********7 IEC******1, IEC******6, IEC***********2 |
|
| Output | 0～**0Vrms,*2Arms,*6A(peak value) | |
| Voltage measurement accuracy | ±0.1% | |
| CT Ratio | Range | 1～****0 |
| accuracy | ±0.*5% | |
| PT Ratio | Range | 1～****0 |
| accuracy | ±0.*5% | |
| Phase | Range | ±2min |
| accuracy | 0.5min | |
| DC resistance | Range | 0～**0Ω |
| accuracy | 0.2%±2mΩ | |
| Burden | Range | 0～***0VA |
| accuracy | 0.2%±0.*2VA | |
| Power supply | AC**0V±*0%/AC**0V±*0%,*0/*0Hz | |
| Environmental Conditions |
Operating temperature: **0℃～*0℃ Humidity:≤*0% |
|
| Weight and Dimensions |
Dimensions:**5mm×**0mm×**3mm Weight:≈*0kg |
|
