3/5G gallon
automatic barrel drinking water filling capping
machine(10-20Liter)
XG-100/J series auto barrel washing filling
capping equipment: capacity range is from 60-1200bucket per
hour.
Brief
introduction
After a
detailed market research, our factory gave birth to the XG-100/J, a
brand new type of micro-computer automatic bottle washing and
filling machine, which embodies the new technology and craft. Every
function is took order by the micro-computer, so that each
programmer is ensured to be automatic.
This water
bottling machine is suitable for 3/5G bottle size. It adopts PLC
automatic control system. It combines washing, filling and capping
three functions into one machine. The whole frame is stainless
steel SUS304. Appearance is beautiful, Easy to operating and
maintaining. And it is high degree of
automation.
Floating rotary
filling system
Bottle feeding
method: rotary clasping
Filling capacity
: 60-1200 buckets/hr
Filling mold:
Floating rotary filling; rising and feeding bottle to start
filling; dropping and moving out bottle to finish
filling.
Filling head:
Italian type filling water nozzle
Bottle's spec(mm):
270*490*56
Cap's
spec(mm):58*40(mm)
1.Working
principle:
When bottles are
sent to the machine by conveyor continuously, they firstly are
delivered to the receiving wheel by air-slide conveyor and then to
washing part. The bottle clamps hold the bottles and turn over 180*
to wash, then return back to their original position after enough
washing and drying. Then, the bottles are sent to the middle thumb
wheel. 1) and to the filling part to be filled, then moved by
middle thumb wheel. 2) and reach to capping part to be capped, at
the same time, cap trimmer sends caps to the top of the bottles and
capper screws caps. At last, bottles are sent to the conveyor chain
by the out stirring wheel to next working
position.
2.Main
characteristic:
1).Adaptability
is wide: Because all parts have a height adjust device.
2).Production capacity can be adjusted continuously: using a
frequency inverter to control the speed. So it works more
reliable.
3) This machine
has a complete set of reliable protection system to protect the
machine itself and the operator.
4)Compare with
similar type of machine, it has following
performances:
More compact in
structure, more beautiful in appearance.
The structure of
bottle rinsing clamp is more delicate.
Screw head uses
magnetic parts.
3.
Parameter:
�
| Model: | XG-100 | XG-200 | XG-300 | XG-400 | XG-600 | XG-900 | XG-1200 |
| Volume | 10/20 | 10/20 | 10/20 | 10/20 | 10/20 | 10/20 | 10/20 |
| Barrel size:mm | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Capacty:b/h | 100 | 200 | 300 | 400 | 600 | 900 | 1200 |
| Weight:kg | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
| Model | XG-100/J |
| Capacity | 100 Bucket per hour |
| Power | 1.5KW |
| Washing system |
Disinfection solution medicine clean Tap water clean Pure water clean |
| Working system | Floating rotary filling system |
| Bottle feeding method | Rotary style sealer |
| PLC control system | LG, Korea |
| Filling mold |
floating rotary filling, rising and feeding bottle to
start filling,dropping and moving out bottle to finish filling |
| Cap head | 1 head, with cap arranger system |
| Filling head | 1 head, Italian type filling water nozzle |
| Frame body | SUS304 |
| The direction of bottle output | Bottle output with linear direction |
| Machine size | 2600*740*1670mm |

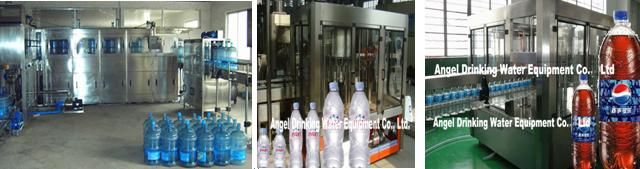

Products catalog:
